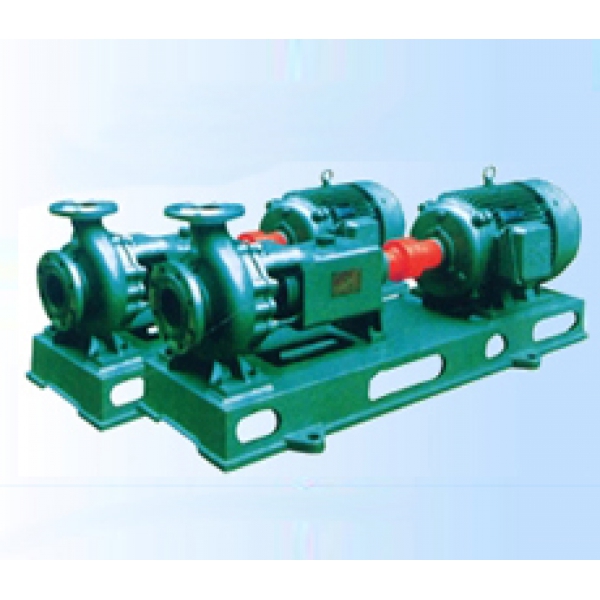

IJ系列耐腐蝕泵為單級單吸懸臂式離心泵.其標記,額定性特點和尺寸等均符合GB5662-1985尺度,等效于ISO2858-1975.它與國家推廣的IH型泵屬同一類型。
IJ化工無堵塞堿泵
IJ化工流程泵與介質接觸的部件,常用鑄鐵,鑄鋼,2Cr13,0Cr18Ni9,1Cr18Ni9,0Cr18Ni9Ti,1Cr18Ni9Ti,0Cr18Ni12Mo2Ti,40Cr, 蒙乃爾,1Cr18Ni12Mo2Ti,Ti(鈦), 00Cr17Ni12Mo2Ti,哈氏B合金,0Cr25Ni20,F5系列合金,20合金鋼, 0Cr25Ni6Mo3Cu2Mn2Si等材質,軸封采用機械密封、動力密封及填料密封,用戶可以根據實際工況任意選定。
二、IJ化工流程泵廣泛用途 IJ耐腐蝕堿泵性能參數表
|
型 號 |
轉速 r/min |
流量 m3/h |
揚程 m |
效率 % |
軸功率 |
配 套 電 機 |
Y100L-2/3 |
Y112M-2/4 |
||
比重r=1.00 |
比重r=1.35 |
比重r=1.84 |
||||||||
32-20-180 |
1450 |
1.8~3 |
10~12 |
16 |
0.55 |
Y802-4/0.75 |
Y90S-4/1.1 |
Y90L-4/1.5 |
||
2900 |
3.5~6 |
40~68 |
16.5 |
3 |
Y112M-2/4 |
Y132S1-2/5.5 |
Y132S2-2/7.5 |
|||
32-20-180A |
3~5 |
35~40 |
15 |
2.4 |
Y100L-2/3 |
Y112M-2/4 |
Y132S1-2/5.5 |
|||
40-25-125 |
2900 |
4.8~7.2 |
16~22 |
39 |
0.84 |
Y802-2/1.1 |
Y90S-2/1.5 |
Y90L-2/2.2 |
||
40-25-125A |
4~6.2 |
13~18 |
35 |
0.61 |
Y802-2/1.1 |
Y802-2/1.1 |
Y90S-2/1.5 |
|||
40-25-125B |
2.5~3.8 |
13~18 |
35 |
0.36 |
Y801-2/0.75 |
Y801-2/0.75 |
Y802-2/1.1 |
|||
40-25-160 |
2900 |
48~7.2 |
24~33 |
33 |
1.48 |
Y90L-2/2.2 |
Y100L-2/3 |
Y112M-2/4 |
||
40-25-160A |
4~6.2 |
20.8~31.2 |
27 |
1.36 |
Y90S-2/1.5 |
Y90L-2/2.2 |
Y100L-2/3 |
|||
40-25-160B |
3.2~4.8 |
16~22 |
27 |
0.8 |
Y802-2/1.1 |
Y90S-2/1.5 |
Y90L-2/2.2 |
|||
40-25-160C |
2.4~3.6 |
11.2~16.5 |
19 |
0.6 |
Y801-2/0.75 |
Y802-2/1.1 |
Y90S-2/1.5 |
|||
40-25-200 |
2900 |
4.8~7.2 |
40~55 |
24.5 |
3.3 |
Y112M-2/4 |
Y132S1-2/5.5 |
Y132S2-2/7.5 |
||
40-25-200A |
4.4~6.6 |
36.8~51 |
24.5 |
2.81 |
Y112M-2/4 |
Y132S1-2/5.5 |
Y132S2-2/7.5 |
|||
40-25-200B |
3.8~5.7 |
32~45 |
23.8 |
2.19 |
Y100L-2/3 |
Y112M-2/4 |
Y132S1-2/5.5 |
|||
40-25-200C |
2.8~4.3 |
24~35 |
21.6 |
1.36 |
Y90L-2/2.2 |
Y100L-2/3 |
Y112M-2/4 |
|||
40-25-250 |
2900 |
4.8~7.2 |
64~85 |
22.2 |
5.88 |
Y132S2-2/7.5 |
Y160M1-2/11 |
Y160M1-2/15 |
||
40-25-250A |
4.5~6.7 |
60~80 |
20.9 |
5.47 |
Y132S2-2/7.5 |
Y160M1-2/11 |
Y160M2-2/15 |
|||
40-25-250B |
3.8~5.7 |
52~70 |
20.3 |
4.18 |
Y132S1-2/5.5 |
Y132S2-2/7.5 |
Y160M1-2/11 |
|||
40-25-250C |
2.8~4.3 |
40~55 |
17.2 |
3 |
Y112M-2/4 |
Y132S1-2/5.5 |
Y132S2-2/7.5 |
|||
50-32-125 |
1450 |
5~9 |
4~6 |
43 |
0.199 |
Y801-4/0.55 |
Y801-4/0.55 |
Y801-4/0.55 |
||
2900 |
10~15 |
16~22 |
47 |
1.44 |
Y90L-2/2.2 |
Y100L-2/3 |
Y112M-2/4 |
|||
50-32-125A |
9~14 |
13~18 |
45 |
1.1 |
Y90S-2/1.5 |
Y90L-2/2.2 |
Y100L-2/3 |
|||
50-32-160 |
1450 |
5~9 |
6.5~9.6 |
40 |
0.34 |
Y801-4/0.55 |
Y802-4/0.75 |
Y90S-4/1.1 |
||
2900 |
10~15 |
25.6~33 |
44 |
2.47 |
Y112M-2/4 |
Y132S1-2/5.5 |
Y132S2-2/7.5 |
|||
50-32-160A |
9.3~13.5 |
20.8~31.2 |
42 |
1.88 |
Y100L-2/3 |
Y112M-2/4 |
Y132S1-2/5.5 |
|||
50-32-200 |
1450 |
5~9 |
10~15 |
33 |
0.65 |
Y802-4/0.75 |
Y90S-4/1.1 |
Y90L-4/1.5 |
||
2900 |
10~15 |
40~60 |
38 |
4.47 |
Y132S1-2/5.5 |
Y132S2-2/7.5 |
Y160M1-2/11 |
|||
50-32-200A |
9.3~14 |
34.5~51.6 |
39 |
3.5 |
Y112M-2/4 |
Y132S1-2/5.5 |
Y132S2-2/7.5 |
|||
50-32-200B |
8.7~13 |
30.4~45.6 |
36 |
3.13 |
Y112M-2/4 |
Y132S1-2/5.5 |
Y132S2-2/7.5 |
|||
50-32-250 |
1450 |
5~9 |
16~24 |
27 |
1.27 |
Y90L-4/1.5 |
Y100L1-4/2.2 |
Y100L2-4/3 相關產品我要訂購 |
